Low Resolution MSE | High Resolution MSE | |
Processing Rate (Chips/sec) | 30 | 30 |
Number of Target Classes | 20 | 5 |
Number of Pose Angles | 72 | 14 |
Number of Dither Locations | 121 | 49 |
Average Number of Valid Pixels | 162 | 1231 |
Based on a preliminary design of the C80 MSE software, it was estimated that the low resolution processing would take an average of 3.2 clock cycles per pixel to execute the low resolution MSE target match. For high resolution matches, where the raster vector lengths are significantly longer, it was estimated that 2.12 clock cycles per pixel would be required. TI supports two versions of the C80 DSP that run at 40 MHz (25 nanoseconds instruction time) or 60MHz MHz (17 nanoseconds instruction time). Using these timing rates, the number of instruction cycles and the total number of pixels processed per pose angle, functional timing estimates were establish for the C80 CPUs for performing the low and high resolution MSE template matches. Similarly, timing estimates for the C6201 were established. The C6201 DSP runs on a 200 MHz clock or 5 nanoseconds per instruction cycle. In the case of the C6201 it was estimated that the low resolution processing would require an average of 3.5 cycles per pixel and the high resolution processing was estimated to require 1.85 cycles per pixel. The estimated C80 and C6201 Processing and timing estimates are also summarized in table 2.
Processing/Timing Estimates | C80 (40 MHz) | C80 (60 MHz) | C6201 (200 MHz) |
Low Resolution MSE Processing Timing Estimates | |||
Aver # of pixels processed per pose angle (K pixels) | 19.6 | 19.6 | 19.6 |
Number of pixels processed per target class (M pixels) | 1.4 | 1.4 | 1.4 |
Total instruction cycles per target class (MFlops) | 4.5 | 4.5 | 4.9 |
CPU Processing time per target class (Millisecond) | 113 | 75 | 25 |
Chip processing time for 20 target classes (Millisecond) | 565 | 376 | 494 |
High Resolution MSE Processing Timing Estimates | |||
Aver # of pixels processed per pose angle (K pixels) | 60.3 | 60.3 | 60.3 |
Number of pixels processed per target class (K pixels) | 844 | 844 | 844 |
Total instruction cycles per target class (MFlops) | 1.8 | 1.8 | 1.6 |
CPU Processing time per target class (Millisecond) | 45 | 30 | 7.8 |
Chip processing time for 5 target classes (Millisecond) | 56 | 37 | 39 |
Data transfers between the C80 external I/O interface and the internal CPU data RAM use 32 bit wide data paths and operate at the chip clock rate. As a result, the internal C80 bus was modeled as a 160 MB/second data bus for the 40 MHz C80 and 240 MB/second for 60 MHz version. The board control/data bus was designed and modeled as a 64-bit wide bus, running at one half the 40 MHz or 60 MHz C80 clock speed, reflecting the C80Õs 64-bit wide input data interface. The template memory was designed to use 64 bit wide data words using 50 or 40 nanosecond DRAM to match the C80 160 or 240 MB/second data rates.
In the C80 architecture each of the CPUs has 6 Kbyte of data RAM, split into three 2 Kbyte data banks. To map the MSE function onto the C80 DSP architecture, consideration had to be given to the amount of image chip and template data that could be stored in each CPU's RAM. To reduce contention on the C80 internal crossbar, the most efficient design was to have each CPU operate on data within its own data RAM. This limited the maximum number of pose angle templates that could be loaded at a one time and required that the templates be read in sequentially as each image chip was processed.
The size of the low resolution image chip was less than 2 Kbytes and was stored in one of the 2K banks of the CPU DRAM. The remaining 4 KB of RAM was used to store template data. The average, low resolution template size was about 400 bytes. As a result, only nine templates at a time could be read in and processed. In order to process a single target class, with 72 pose angles, 8 template sets had to be processed sequentially.
MSE low resolution data flow processing was initiated by the board control processor sending a low resolution image chip to each of the C80s. Each of the four on chip CPUs received the same image chip. Once the CPUs received the image chip data, the first 9 templates were read in and the individual template matches were performed. This process was repeated 8 times for each of the five target classes. The other fifteen target classes were simultaneously processed by the other three C80 CPUs. When the low resolution processing was completed, the CPU notified the C80 RISC processor and transferred the pose angle, dither location and best MSE score for each of itsÕ 5 classes.
When all four CPUs completed the low resolution processing, the RISC processor notified the board controller and transferred the data for all 20 target classes. The same process was performed by each of the four C80s. When all four C80s notified the control processor that they had completed low resolution processing, the control processor sent the high resolution image chip data to all 4 C80s. This synchronized the initiation of the C80s high resolution processing. There was a slight loss of compute time for the CPUs that completed the low resolution processing early. However, simulation results showed that with the static assignment of classes, the variance in low resolution processing times was less than 10%.
Since the high resolution image chip spans two CPUs, there was the potential for contention between the CPUs when accessing the image chip data. When contention occurs, the C80 uses round-robin arbitration to allow one CPU to access the RAM during the first cycle and then the other CPU is given access during the next cycle. Thus, one CPU must wait an extra clock cycle to receive its data. To reduce the probability of contention, each CPU pair processed the same pose angle template. They initiated processing at opposing dither locations. With 49 dither locations per pose angle template, the first CPU processed 25 dither locations starting at the top of the image chip while the second CPU processed the remaining dither locations starting from the bottom. Although they each process the full template at each dither location, the number of pixels requiring access to the others RAM was significantly reduced.
A second reason for having the two CPUs process the same pose angle was to balance the distribution of the processing. There were 14 pose angle templates to be processed for each class in high resolution mode. The 14 pose angle templates for the 5 target classes did not divide evenly across four CPUs. On the other hand, having two CPUs process the same pose angle template allowed the 14 pose angle templates to be evenly distributed between the two CPU pairs.
After all the C80's completed the low resolution processing, the board control processor initiated the high resolution processing by sending the high resolution image chips to the individual CPUs. The first 4000 bytes of the image chip were sent to the first CPU and the second half was downloaded to the second. The same data was also sent to the second CPU pair on the C80. Different high resolution image chips were sent in the same manner to the other C80s on the board.
When each CPU received its high resolution image chip data, it fetched the first pose angle template for the first of its five classes. CPUs 1 and 2 fetched the same pose angle template, formatted in opposite order. CPUs 3 and 4 fetched a different template formatted in the same manner. Each CPU processed the entire template for half the dither locations. When a CPU pair finished processing a template the next template was fetched and processed. The 14 pose angle templates were split between the two CPU pairs. The odd numbered poses, were assigned to CPUs 1 and 2, and the even numbered ones were assigned to CPUs 3 and 4. When the CPUs finished processing the templates for the first class, they continued fetching and processing the templates for the next class until all five target classes had been processed. When all five classes were completed, the RISC processor was notified and the MSE processing results were transferred. When the RISC processor received notification from all the CPUs, it notified the control processor and transferred the final MSE scores and best positions for each of the five classes.
When the control processor was notified by all four C80's that they had completed high resolution processing, the control processor repeated the cycle by sending the next set of four low resolution image chip data to the C80's.
Separate statistical models were used in low resolution and high resolution processing models. The models consisted of the minimum and maximum number of pixels processed as a function of class type and pose angle. A random process was used to vary number of pixels processed between the minimum and maximum for each pose angle and a variable performance time token was computed.

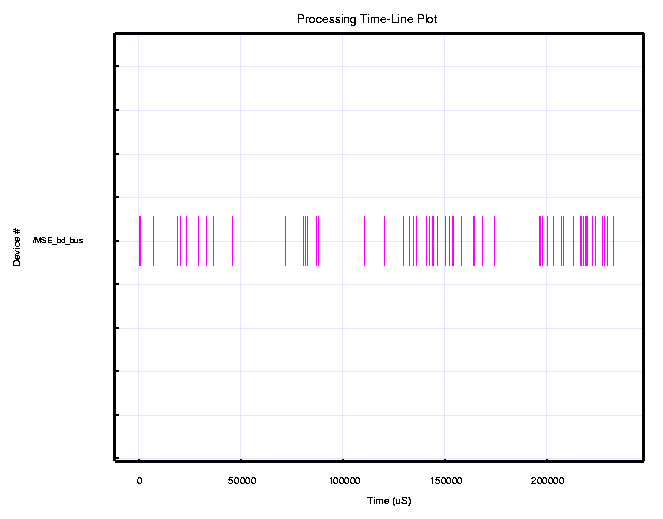

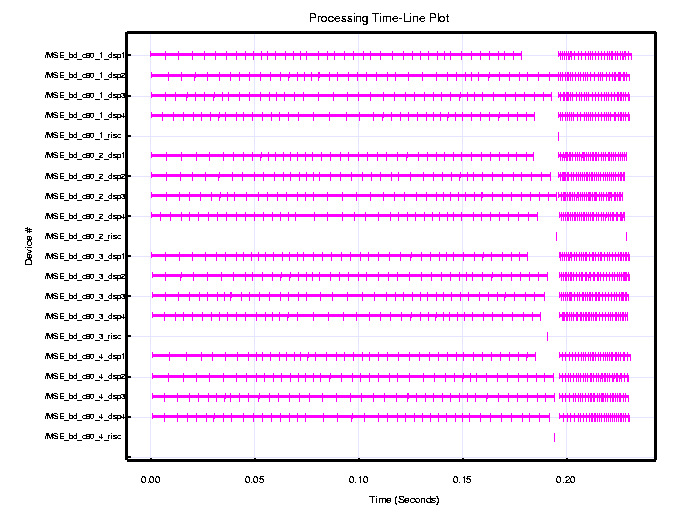

A blow-up of the timeline for the processing of the first image chip is shown in Figure 3. This figure illustrates the randomness in the completion times due to different sized templates and statistical early termination. Figures 4 and 5 show the bus utilization for the same period, for the on-chip bus model and the board level bus model, respectively. The board level bus timeline shows much higher bus utilization than the on-chip bus utilization, as expected. However, these graphical sketches actually over exaggerate the utilization due to the nature of the plotting ink.
Actual bus and processor utilization were recorded during simulation and are summarized in the following table.
C80 (40 MHz) MSE Custom Board Simulation Results | ||
Model Component | Bus Transfer Time (nsec) | Bus Utilization |
board_bus | 205,253,764 | 10.263% |
c80_1/proc_bus: | 55,246,152 | 2.762% |
c80_2/proc_bus: | 54,874,229 | 2.744% |
c80_3/proc_bus: | 54,978,188 | 2.749% |
c80_4/proc_bus: | 54,291,814 | 2.715% |
Model Component | CPU Processing Time (nsec) | CPU Utilization |
c80_1/dsp1: | 1,884,183,461 | 94.210% |
c80_1/dsp2: | 1,934,899,120 | 96.745% |
c80_1/dsp3: | 1,928,164,360 | 96.410% |
c80_1/dsp4: | 1,895,619,476 | 94.780% |
c80_2/dsp1: | 1,840,062,754 | 92.005% |
c80_2/dsp2: | 1,895,482,050 | 94.775% |
c80_2/dsp3: | 1,885,060,142 | 94.255% |
c80_2/dsp4: | 1,835,692,811 | 91.875% |
c80_3/dsp1: | 1,852,119,342 | 92.605% |
c80_3/dsp2: | 1,905,595,772 | 95.280% |
c80_3/dsp3: | 1,893,098,615 | 94.655% |
c80_3/dsp4: | 1,853,708,347 | 92.685% |
c80_4/dsp1: | 1,887,428,021 | 94.370% |
c80_4/dsp2: | 1,915,043,308 | 95.750% |
c80_4/dsp3: | 1,916,278,352 | 95.815% |
c80_4/dsp4: | 1,880,183,937 | 94.010% |
average | 94.383% |
The bus utilization was shown to be very low, resulting in minimal bus contention and high processor utilization. The sum of the four local bus times are slightly larger than the board-level bus time indicating that there was some waiting at the local bus for the board-level bus to clear. This time was computed to be 6.4% of the total data transfer time for each local bus.
The average processor utilization across all 16 DSPs is 94.383%, which was quite highly efficient. This is due to the highly repetitive nature of the MSE algorithm and relatively low bus activity.
In summary, the results of the C80 (40 MHz) virtual prototype verified that two VME 6U boards having four DSPs could process 34 image chips per second and meet the MSE requirement for processing 30 image chips per second with a 13% margin. Partitioning of the MSE processing tasks was shown to be straightforward by assigning of each C80 to a single image chip for both low and high resolution classification processing. The control software used a straight forward design and a simple on-board bus architecture with a single low and high resolution template memory was shown to be sufficient. Furthermore, a software design strategy was developed and verified for partitioning the image chip, template data and processing tasks to fit in the 8 Kbytes of C80 on-chip memory.
Finally, while the current simulations used static class assignments and synchronized the start of low resolution processing and high resolution processing for all C80's, the software design could be made dynamic to increase the image chip throughput. In the future, if early termination computation times result in greater variances, a dynamic scheduler could be added to the C80 RISC processor to more evenly distribute the processing. In addition should addition processing efficiently be required the MSE processing on eachC80 could be started independently and not have to wait until the other DSPs have completed processing. Using these two enhancements, the overall throughput performance could be improved.
C80 (60 MHz) Custom Board Simulation Results

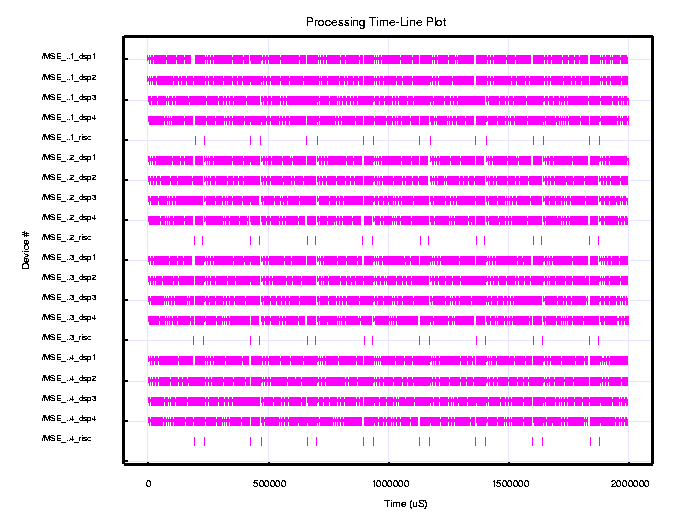

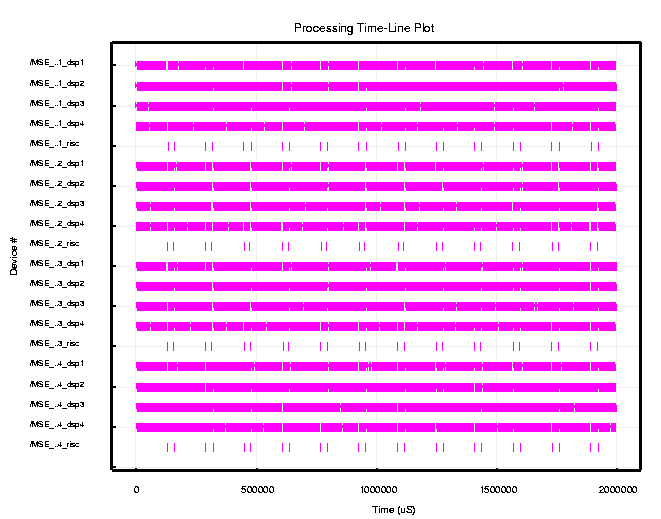

Figure 6 shows a timeline for the C80 (60 MHz) for a two second simulation. The timelines show all 16 DSPs first doing the low resolution computations for a period of about 132 milliseconds, followed by the high resolution computations for approximately 28 milliseconds. They all repeat this process continuously. During the two second simulation interval, each c80 processes 12.5 image chips, resulting on a total of 50 image chips being processed by all four c80's. Based on these simulation results, we established that a C80 (60 MHz) custom board could support a sustained 25 image chips per second throughput rate.

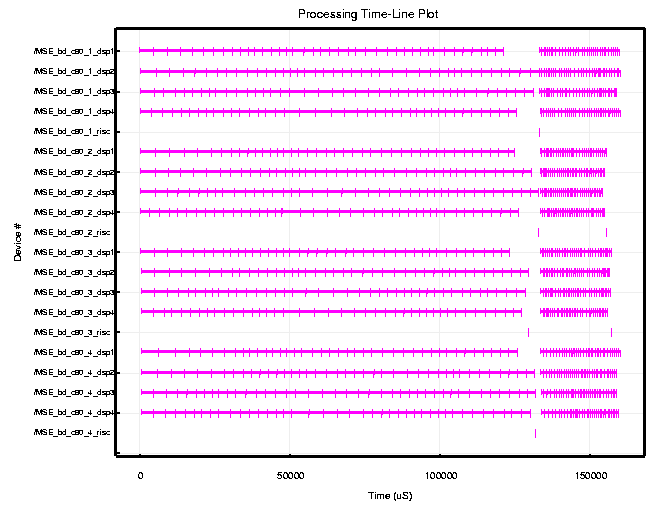

Again an expanded view of the timeline for the processing of the first image chip is shown in Figure 7. The randomness in the completion times due to different sized templates and statistical early termination is more visible in this figure. The on chip and board level bus timelines again showed that bus utilization and contention were minimal. However, these graphical sketches actually over exaggerate the utilization due to the nature of the plotting ink.
Again the actual utilization for the buses and processors were recorded during simulation and are shown in the following table.
C80 (60 MHz) MSE Custom Board Simulation Results | ||
Model Component | Bus Transfer Time (nsec) | Bus Utilization |
board_bus: | 216,043,404 | 10.802% |
c80_1/proc_bus: | 58,374,177 | 2.919% |
c80_2/proc_bus: | 58,011,386 | 2.901% |
c80_3/proc_bus: | 58,226,497 | 2.911% |
c80_4/proc_bus: | 57,468,033 | 2.873% |
Model Component | CPU Processing Time (nsec) | CPU Utilization |
c80_1/dsp1: | 1,875,474,708 | 93.775% |
c80_1/dsp2: | 1,936,482,479 | 96.825% |
c80_1/dsp3: | 1,929,793,506 | 96.490% |
c80_1/dsp4: | 1,885,472,377 | 94.275% |
c80_2/dsp1: | 1,831,737,553 | 91.585% |
c80_2/dsp2: | 1,888,720,818 | 94.435% |
c80_2/dsp3: | 1,875,378,151 | 93.770% |
c80_2/dsp4: | 1,830,150,174 | 91.510% |
c80_3/dsp1: | 1,854,860,479 | 92.745% |
c80_3/dsp2: | 1,894,035,317 | 94.702% |
c80_3/dsp3: | 1,892,293,386 | 94.615% |
c80_3/dsp4: | 1,844,827,583 | 92.245% |
c80_4/dsp1: | 1,876,314,461 | 93.815% |
c80_4/dsp2: | 1,909,863,994 | 95.495% |
c80_4/dsp3: | 1,921,419,744 | 96.070% |
c80_4/dsp4: | 1,875,255,291 | 93.765% |
average | 94.132% |
The sum of the four local bus times were again slightly larger than the board-level bus time indicating that there was some contention on the local bus for the board-level bus to clear. This time was computed to be 6.9% of the total data transfer time for each local bus.
The average processor utilization across all 16 DSPs was 94.132%, which is highly efficient, due to the repetitive nature of the algorithm and low processor communication activity.
In summary, the results of the c80 (60 MHz) virtual prototype established that two VME 6U boards having four DSPs, could process 50 image chips per second and meet the MSE requirement for processing 30 image chips per second with a 67% margin. As in the case of the 40 MHz virtual prototype, partitioning the MSE processing tasks was straight forward, a simple on-board bus and single template memory met the requirements, and the image chip, template data and processing tasks were sized to fit in the 8 Kbytes C80 on-chip memory.
In partitioning and mapping the MSE the low and high resolution processing tasks, static class assignment was used. However, if in the future, due to greater variances in early termination completion times, a dynamic scheduler could be added to the on-chip RISC processor to more evenly distribute the processing load. In addition should increased processing efficiently be required the MSE processing on each C80 could be started independently and not have to wait until the other DSPs have completed processing. Using these two enhancements, the overall throughput performance could be improved.

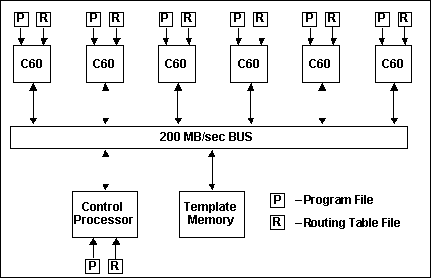

Each C6201 DSP has 64 Kbytes of on-chip program memory and 64 Kbytes of on-chip data memory. This provides ample memory to load the image chip and at least nine low resolution templates or one high resolution template.
When the low resolution processing was completed, the c6201 notified the control processor and transferred the best score for each of the 20 classes. When the control processor was notified that all six C6201's had completed the low resolution processing, the control processor sent the high resolution image chip data. This synchronized all DSPs to start the high resolution processing at the same time. While there is some lost time for the DSPs that completed the low resolution processing early, simulation results showed the variance in processing times was less than 5%.
In the case of the high resolution, the five best classes from the low resolution are processed, for fourteen pose angles, and at 49 dither. Each C6201 processes all five classes for itsÕ high resolution image chip.
When a C6201 received the high resolution image chip data, it fetched the first pose angle template for the first class and performed the high resolution target match. The fourteen pose angle templates were loaded and processed in succession. This process was then repeated until all five target classes have been completed. When a C6201 finished processing all five classes, it notified the control processor and transferred the final classification scores and best pose angles for each of the five target classes.
When all six C6201s have completed high resolution processing, the control processor repeated the cycle by sending the next six low resolution image chips. This process synchronizes all C6201 DSPs to start the low resolution processing at the same time.

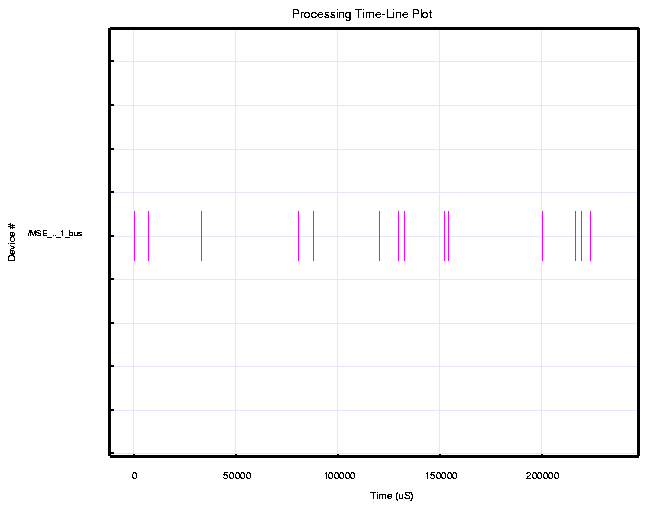

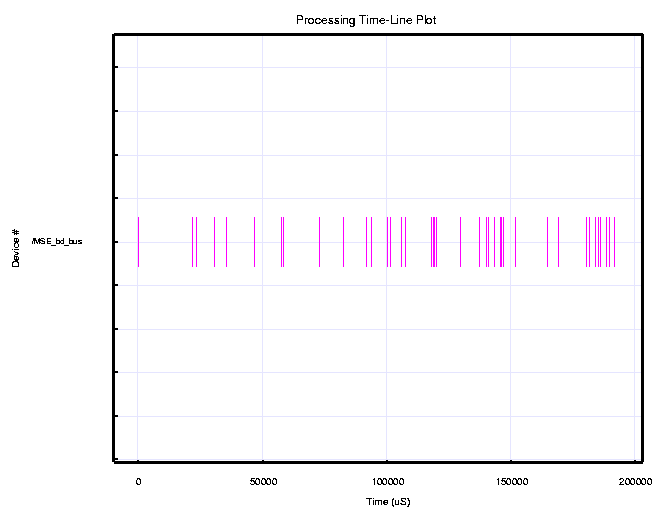

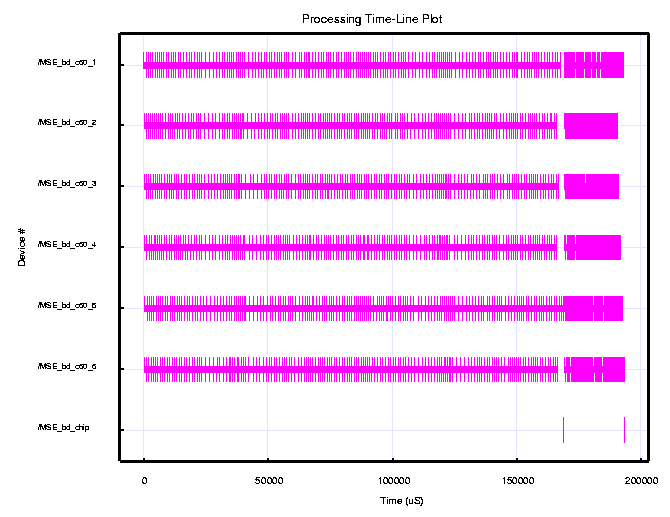

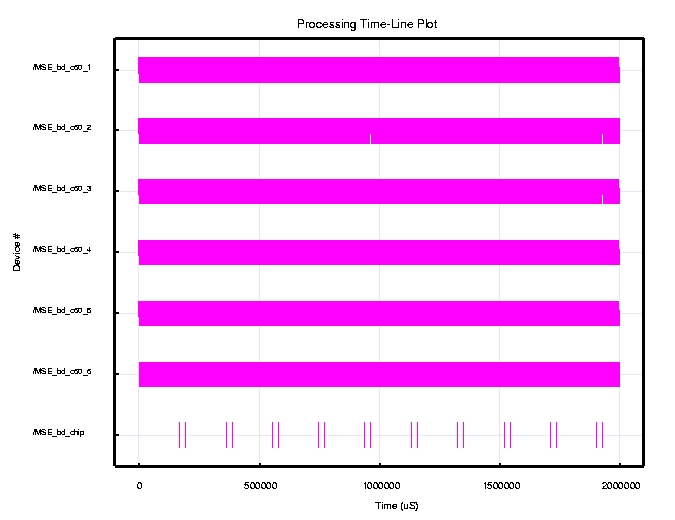

A blow-up of the timeline for the processing of the first image chip by each C6201 is shown in Figure 10. The randomness in the completion times due to different sized templates and statistical early termination is more visible in this figure. Figure 11 shows the bus utilization time for the same period, for the board level bus model.
Actual utilization for the bus and processors was recorded during simulation over the two second interval and are tabulated in the table below:
C6201 (200 MHz) MSE Custom Board Simulation Results | ||
Model Component | Bus Transfer Time (nsec) | Bus Utilization |
bus_time | 222,206,370 | 11.11% |
Model Component | CPU Processing Time (nsec) | CPU Utilization |
MSE_bd_C6201_1 | 1,936,098,796 | 96.80% |
MSE_bd_C6201_2 | 1,895,045,646 | 94.75% |
MSE_bd_C6201_3 | 1,910,120,965 | 95.50% |
MSE_bd_C6201_4 | 1,929,789,580 | 96.50% |
MSE_bd_C6201_5 | 1,938,223,634 | 96.90% |
MSE_bd_C6201_6 | 1,931,768,226 | 96.60% |
average | 96.18% |
The average processor utilization across all six C6201 DSPs was 96.18%, which is again extremely efficient as a result of the repetitive nature of the algorithm and low level of bus activity.
In summary the use of performance modeling for the 200 MHz C6201-based MSE application proved quite useful in evaluating a number of C6201 custom board architectural issues. It verified that the development or purchase of a VME 6U board having six C6201's could meet the MSE requirement for processing 30 image chips per second with a 3% margin. Partitioning of the tasks was shown to be straightforward with the assignment of each image chip to a separate C6201. The MSE control software was shown to be relatively simple and the feasibility of using a simple on-board bus validated. In addition, a single on-board template memory for all six C6201's proved to be sufficient to handle the template storage and data transfer requirements. Each C6201 DSP contained sufficient on-chip memory to allow multiple templates to be loaded for processing. The actual number of templates used in the simulations was arbitrary and was not critical for the C6201 implementation. If it makes the programming any simpler, a larger number of templates could be loaded in the final implementation.
In partitioning and mapping the MSE, the low and high resolution processing tasks, static class assignment was used. However, if in the future, due to greater variances in early termination completion times, a dynamic scheduler could be added to the board control processor to more evenly distribute the processing load. In addition, should higher processing efficiently be required the MSE processing on each C6201 could be started independently and not have to wait until the other DSPs have completed processing. Using these two enhancements, the overall throughput performance could be improved.
Finally, since the C6201 virtual prototype simulation times is based on an average of 3.5 and 1.85 cycles per pixel for the low and high resolution processing respective, it was considered critical to verify the actual C6201 with timing benchmarks early in the detail design cycle. This was further reinforced by the C6201 sophisticated long instruction word architecture and the immaturity of optimizing C compiler. All three of these factors lead to the recommendation that the MSE algorithms be captured and tested on a C6201 or C6201 simulator/ emulator.
A summary of some of the key design factors and simulation results for the C80 (40 MHz), C80 (60 MHz) and C6201 (200 MHz) MSE custom board virtual prototypes are shown in the following table.
C80 (40 MHz) | C80 (60 MHz) | C6201 (200 MHz) | |
Number of processors per board | 4 | 4 | 6 |
Low Resolution Average ops/pixel | 3.20 | 3.20 | 3.50 |
High Resolution Average ops/pixel | 2.12 | 2.12 | 1.85 |
Number of Chips Processed (2 sec runtime) | 34 | 50 | 62 |
Single Board Processing Rate (chips/sec.) | 17 | 25 | 31 |
Number of Boards Required (30 chips/sec) | 2 | 2 | 1 |
Processing Margin (percent) | 13% | 67% | 3% |
Average Processor Utilization | 94.4% | 94.1% | 96.2% |
Average CPU Bus Utilization | 10.3% | 10.8% | 11.1% |
Average CPU Bus Utilization | 2.7% | 2.9% | NA |
As shown the C80 (40 MHz) custom design had an average throughput rate of 17 image chips per second while the 60 MHz design could process 25 chips per second. Both designs required two VME 6U boards to meet the SAIP MSE processing requirement of 30 image chips per second. In the case of the C6201 custom board the virtual prototype established that a single VME 6U could process 31 image chips per second.
The MSE custom board virtual prototype results were based on estimates of the number of instruction cycles needed to perform the MSE low and high resolution computations. While the models were developed using conservative estimates of the communication and loop overhead, final throughput could vary based on the final DSP instruction counts. As a result, it was recommended that emphasis be placed on benchmarking the MSE low and high resolution timing early in the detailed design cycle. This early benchmark data was considered critical for the C6201 design where the performance margin was only 3%.
The virtual prototype preliminary software design used static assignment of the target templates. In addition, the initiation of both the low and high resolution template matching processes was synchronized for the individual DSPs by the control processor. In both instances, dynamic scheduling of the target templates or image chip processing could provide additional timing margins if benchmarks for the current software design fall short of the required processing rate.
Virtual prototyping of the C80 and C6201 MSE custom board design proved to be invaluable in resolving a number of critical hardware/software architectural issues. First and foremost the C80 and C6201 virtual prototypes provided the performance data for establishing the processing throughput rates of the candidate DSP custom board designs. This data was a key factor in the MSE custom board tradeoff analysis and selection. The virtual prototype also provided the mechanism for investigating, refining and establishing the custom board software design. The MSE low and high resolution control software was developed and verified and the feasibility of performing both the low and high resolution processing on a single DSP was established. Finally, these performance simulations clearly demonstrated that the bandwidth requirements for image chip and template data transfer were minimal and that neither a high speed interconnect network or dedicated template caches were necessary.
Using the RASSP Hardware/Software virtual prototyping tools and techniques, ATL was able to develop, refine and verify the designs of the three MSE DSP custom board designs in less than two months and fewer than 6 manweeks. Using the results of these virtual prototyping efforts ATL and the government Tri-Service RASSP Review team were able to easily identify the benefits and shortcomings for each of the candidate designs and make a fully informed decision on the final architecture design for the MSE processing subsystem.
